PWU,PWS,PWO型平面二次包络环面蜗杆减速机轴端许用径向力表和传动效率表

浏览次数：

公称传动比i_N	输入转速₁/ rmin^-1	中心距/mm
		80	100	125	140	160	180	200	225	250	280～710
		传动效率η/%
10	1500	90	91	91	92	92	93	93	94	94	95
	1000	90	91	91	92	92	93	93	94	94	95
	750	89	89.5	90	91	91	92	92	93	93	94
	500	87	87.5	88	89	89	90	90	91	91	92
12.5	1500	89	90	90	91	91	92.5	92.5	93.5	93.5	94.5
	1000	89	90	90	91	91	92.5	92.5	93.5	93.5	94.5
	750	88	88.5	89	90	90	91.5	91.5	92	92	93
	500	86	86.5	87	88	88	89	89	90	90	91
14	1500	88.5	89.5	89.5	91	91	92	92	93	93	91
	1000	88.5	89.5	89.5	91	91	92	92	93	93	94
	750	87	88	88.5	89.5	89.5	91	91	91.5	91.5	92.5
	500	85	86	86.5	87.5	87.5	88	88	89	89	90
16	1500	88	89	89	90	90	91	91	92	92	93
	1000	88	89	89	90	90	91	91	92	92	93
	750	86.5	87	88	89	89	90	90	91	91	92
	500	84	84.5	85	86	86	87	87	88	88	89
18	1500	87.5	88	88	89.5	89.5	90	90	91	91	92
	1000	87	88	88	89	89	90	90	91	91	92
	750	85.5	86	87	88	88	89.5	89.5	90	90	91
	500	83	83.5	84	85	85	86	86	87	87	88
20	1500	86.5	87	87	88	88	89.5	89.5	90	90	91
	1000	86	86.5	87	88	88	89.5	89.5	90	90	91
	750	84.5	85	86	87	87	89	89	89.5	89.5	90
	500	82	82.5	83	84	84	85	85	86	86	87
22.4	1500	85.5	86	86	87	87	88.5	88.5	89	89	90
	1000	85	86	86	87	87	88.5	88.5	89	89	90
	750	83.5	84.5	84.5	85.5	85.5	87.5	87.5	88	88	89
	500	80.5	81	81	82	82	83	83	84	84	85.5
25	1500	85	86	86	87	87	88	88	88.5	88.5	89
	1000	84	85	86	87	87	88	88	88.5	88.5	89
	750	83	83.5	84	85	85	86	86	87	87	88
	500	79	79.5	80	81	81	81.5	81.5	83	84	85
28	1500	82.5	83	83.5	84	84	85	85	85	86	87.5
	1000	82	82.5	83	84	84	85	85	86	86	87.5
	750	81	81.5	82	83	83	84	84	85	85	86
	500	77	77.5	77.5	78	78	79	79	80	80	81.5
31.5	1500	80	80.5	81	82	82	83	83	84	84	85
	1000	80	80.5	81	82	82	83	83	84	84	85
	750	77	77.5	78	79	79	80	80	81	81	82
	500	73	73.5	74	74.5	74.5	75.5	75.5	76	76	77.5
35.5	1500	78.5	79	79.5	80	80	81	81	82	82	83.5
	1000	78.5	79	79.5	80	80	81	81	82	82	83.5
	750	77	77.5	78	79	79	80	80	81	81	82
	500	73	73.5	74	74.5	74.5	75.5	75.5	76	76	77.5
40	1500	76	76.5	77	78	78	79	79	80	80	81
	1000	76	76.5	77	78	78	79	79	80	80	81
	750	75	75.5	76	77	77	78	78	79	79	80
	500	71	71.5	72	73	73	74	74	75	75	76
45	1500	74.5	75	76	77	77	78	78	79	79	80
	1000	74.5	75	76	77	77	78	78	79	79	80
	750	73.5	74	74.5	75	75	76	76	76.5	76.5	77
	500	69.5	70.5	71.5	71.5	72.5	72.5	73	73	74.5
50	1500	73	74	74	75	75	76	76	77	77	78
	1000	73	74	74	75	75	76	76	77	77	78
	750	72	72.5	73	74	74	75	75	76	76	77
	500	68	68.5	69	70	70	71	71	72	72	73
56	1500	71.5	72.5	72.5	73.5	73.5	74.5	74.5	75	76	77
	1000	71.5	72.5	72.5	73.5	73.5	74.5	74.5	75	76	77
	750	70.5	71	71.5	72.5	72.5	73.5	73.5	74.5	74.5	75.5
	500	67	67.5	68	68.5	68.5	69.5	69.5	71	71	71.5
63	1500	70	71	71	72	72	73	73	74	74	75
	1000	70	71	71	72	72	73	73	74	74	75
	750	69	69.5	70	71	71	72	72	73	73	74
	500	65	65.5	66	67	67	68	68	69	69	70

PWU,PWS,PWO型平面二次包络环面蜗杆减速机输出轴轴端许用径向力表

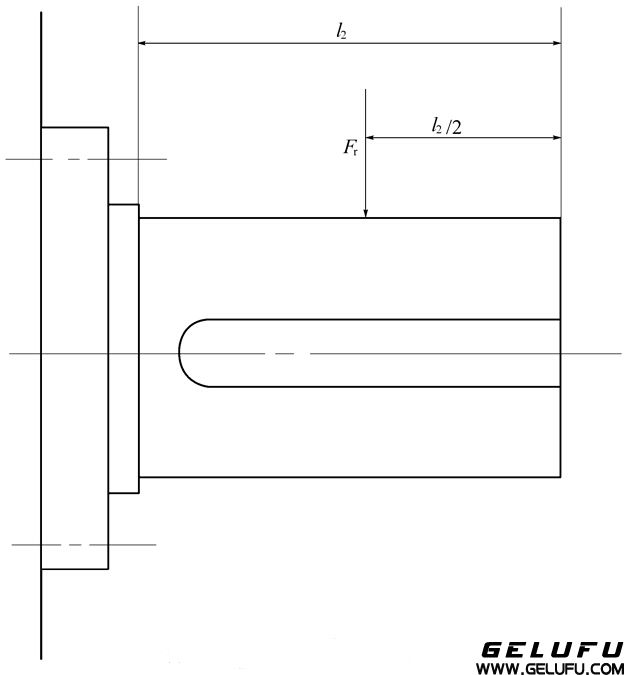

PW型蜗杆减速器输出轴轴端许用径向力F

PW型蜗杆减速器输出轴轴端许用径向力F。许用径向力F₁

中心距/mm	80	100	125	140	160	180	200	225	250	280	315	355	400	450	500	560	630	710
许用径向力/N	2250	3500	5000	6500	9000	11000	14000	17000	21700	27000	31000	35000	40000	43000	46000	49000	52000	56000
